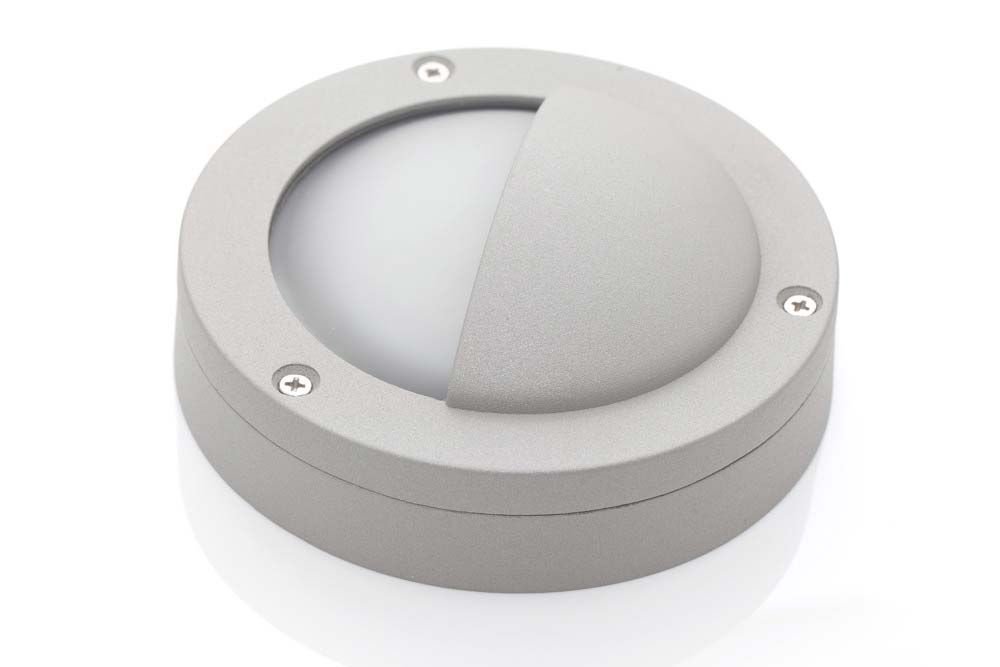

This is a 36 LED 3w bulkhead light. The light emitted is roughly equivalent to a 40w household bulb. The bulkhead is IP54 so suitable for outdoor use.
- LED Cast Aluminium IP54 Fixed Eyelid LED Bulkhead
- MCD - 1100
- Colour White
- Maximum Lamp Wattage - 2.9
- Lamps Included - Yes
- Guarantee - 1 Year
- Overall Diameter - 140mm
- Glass Diameter - 100mm
- Projection - 48°
- Input Voltage - 12V
- IP Rating - IP54
- Number of LEDs - 36
- Lamp Life - 30,000 hours
Unscrew the 3 screws on the facia of the light.
Remove the metal ring and glass cover.
You will now see the LED board, two wires running to a connection block and a black rubber gromit.
Pierce the Gromit's centre with a sharpe object and feed your wire through the hole.
Loosen the screws on the open end of the connection block.
The side of the connection block is marked with an N and a L connect the live wire to the L and the negative to the N.
Screw the bulkhead into place with the screws porvided through the open holes in the unit.
Connect the other end of the wire to your switch and connect to battery.
Turn switch on to check light works.
Replace the glass cover and metal ring and screw back into place.
