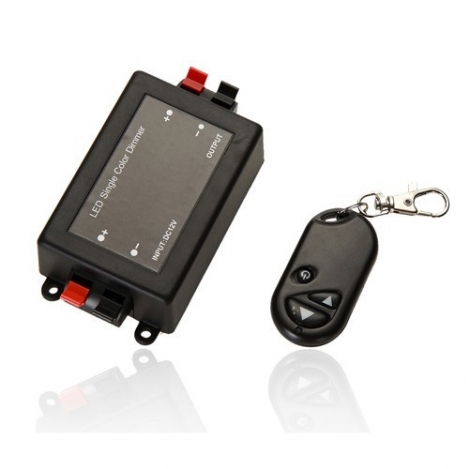

12v Remote Controlled Dimmer Switch

This 12v remote controlled dimmer and on/off switch is designed to work with a range of LED lights.

Please note that the on/off function can be used with all 12v LED lights, but the dimmer function can only be used with dimmable LED bulbs.

1 x Control Box
1 x Remote Control
1 x Instructions

To add the remote control dimmer switch to your 12v or 24v system simply plug the positive and negative wires from you 12v or 24v light into the output side of the control box then from your 12v or 24v battery into the left hand side, or input side, of the control box. Please ensure that a short circuit can not occur between any of the wires before turning on. Once you are happy with the connections the light(s) can now be turned on and off and dimmed via the remote control.

Control Box
L:116mm
w:57mm
H:34mm

Remote Control
L:58mm
W:29mm
H:10mm
