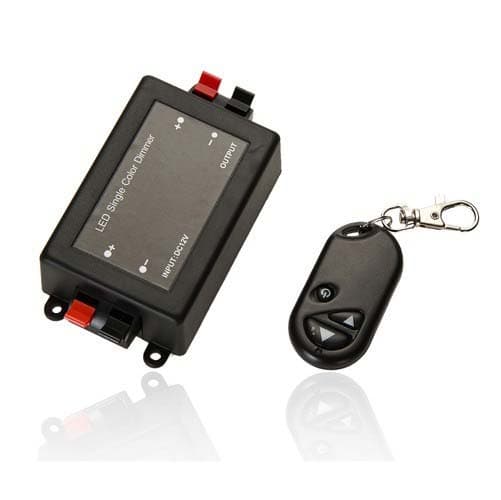

This 12v remote controlled dimmer and on/off switch is designed to work with a range of LED lights.
Please note that the on/off function can be used with all 12v LED lights, but the dimmer function can only be used with dimmable LED bulbs.
- Working Temperature: -25-60°C
- Supply voltage: DC12-24V
- Net Weight: 84g
- Output: 1 Channel
- Rated Load current: <8A
- Output Power: 9V<72w, 12V <96W, 24V <192W
- Range: 20m
Product ID: SS7678
In the Box
1 x Control Box
1 x Remote Control
1 x Instructions
To add the remote control dimmer switch to your 12v or 24v system simply plug the positive and negative wires from you 12v or 24v light into the output side of the control box then from your 12v or 24v battery into the left hand side, or input side, of the control box. Please ensure that a short circuit can not occur between any of the wires before turning on.
Once you are happy with the connections the light(s) can now be turned on and off and dimmed via the remote control.
Frequently Asked Questions
So just to be clear, if I buy this and one of the Geo kits I can use it to dim all the lights?
By Peter on Sep 6, 2016
The standard bulbs provided with the Geo Kits are not dimmable. To use this with the Geo Kits you'll need to purchase 12v dimmable bulbs.
Will this work outdoors with the lumify fairy lights, are they dimmable, and will the control signal transmit through glass?
By Olivia on Oct 26, 2015
This will not work. The dimmer switch is intended to be used with the Geo kits.
