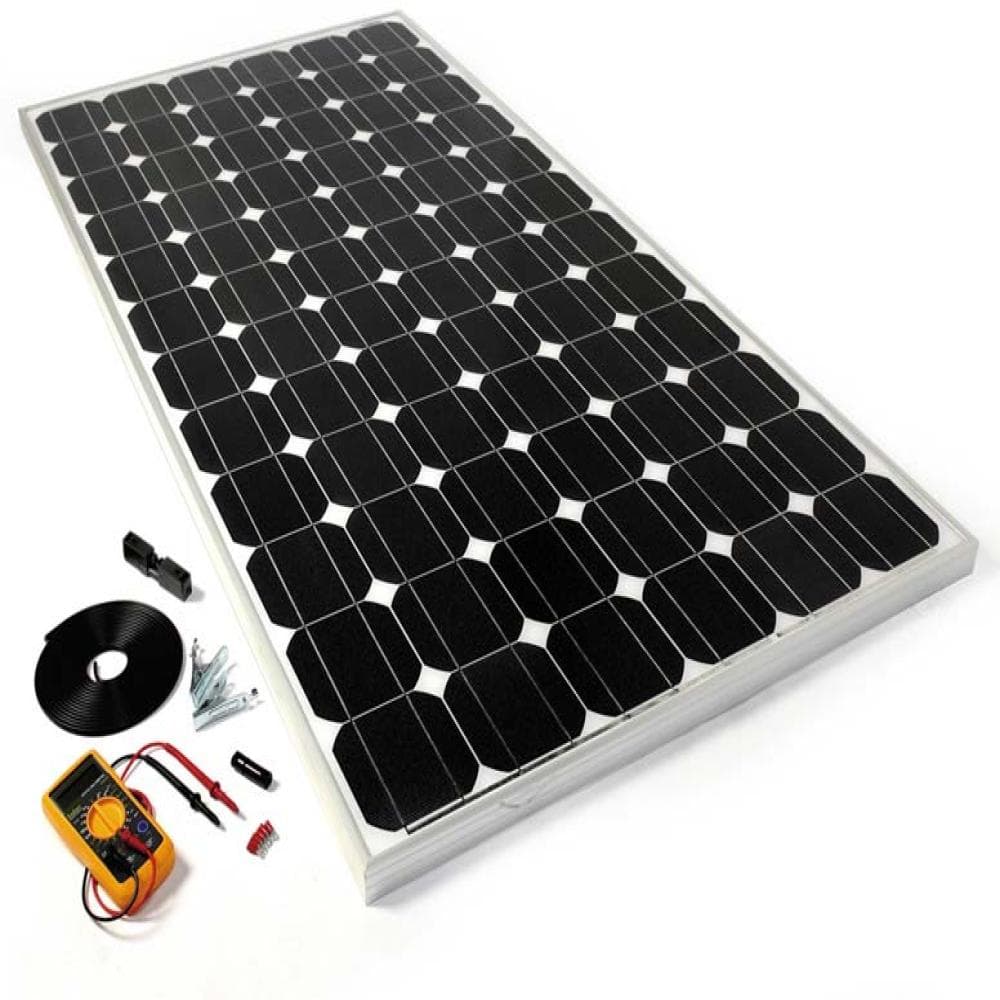

DIY Solar Panel Kit - 150W

DIY high efficiency crystalline solar panel cells for “all weather” charging...

The 150W panel provides much higher power demands and includes bypass diodes to minimise the effect of shadows. It delivers maximum power in the smallest module size saving weight and space. Suitable for powering many higher power consumption devices.

The 150 watt panel provides a continuous trickle feed maintaining and extending the life of any 12 volt battery. The 150 watt solar panel is supplied with all the necessary cable (5m), connectors, detailed installation instructions and a free digital test meter to enable the user to analyse the performance of both solar panel and battery.

The 12Ah (STSPR10) Charge controller (sold separately) should be used with this kit to protect the battery from being overcharged and to prevent reverse current drain.

Technical Description:

High efficiency crystalline cell for “all weather” charging
Perfect for TV operation, 240v appliances* and for permanent fitting
Water resistant, robust construction for outdoor use.
20 year cell warranty and 10 year module warranty

Specifications

Power: 150watts
Peak Output: 9.72A @ 17.2V
Approx. watt-hours/day**: 1050
Approx. amp-hours/day**: 68.9
Dimensions: 1580x793x35mm
Weight: 13.5kg

* An inverter is required power or charge 240v appliances – not included

** Based on 7 hours of average daily peak sunlight hours
