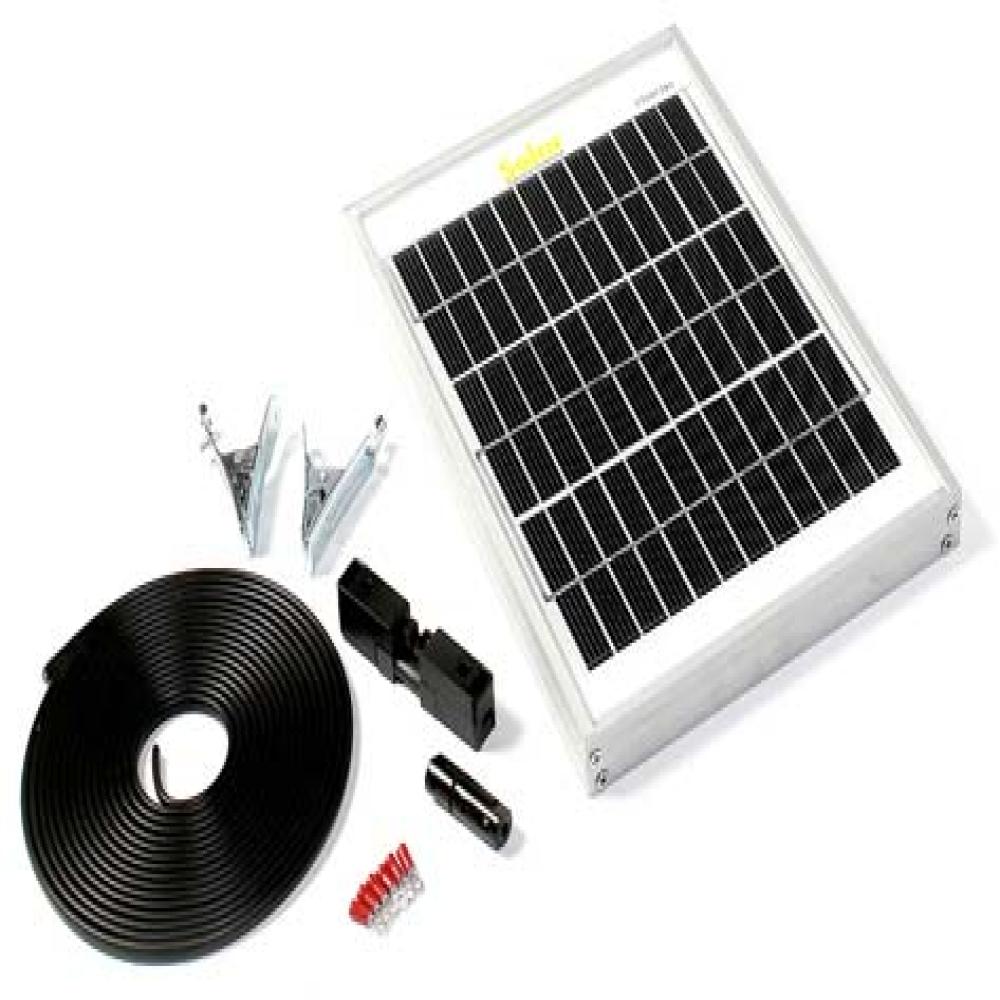

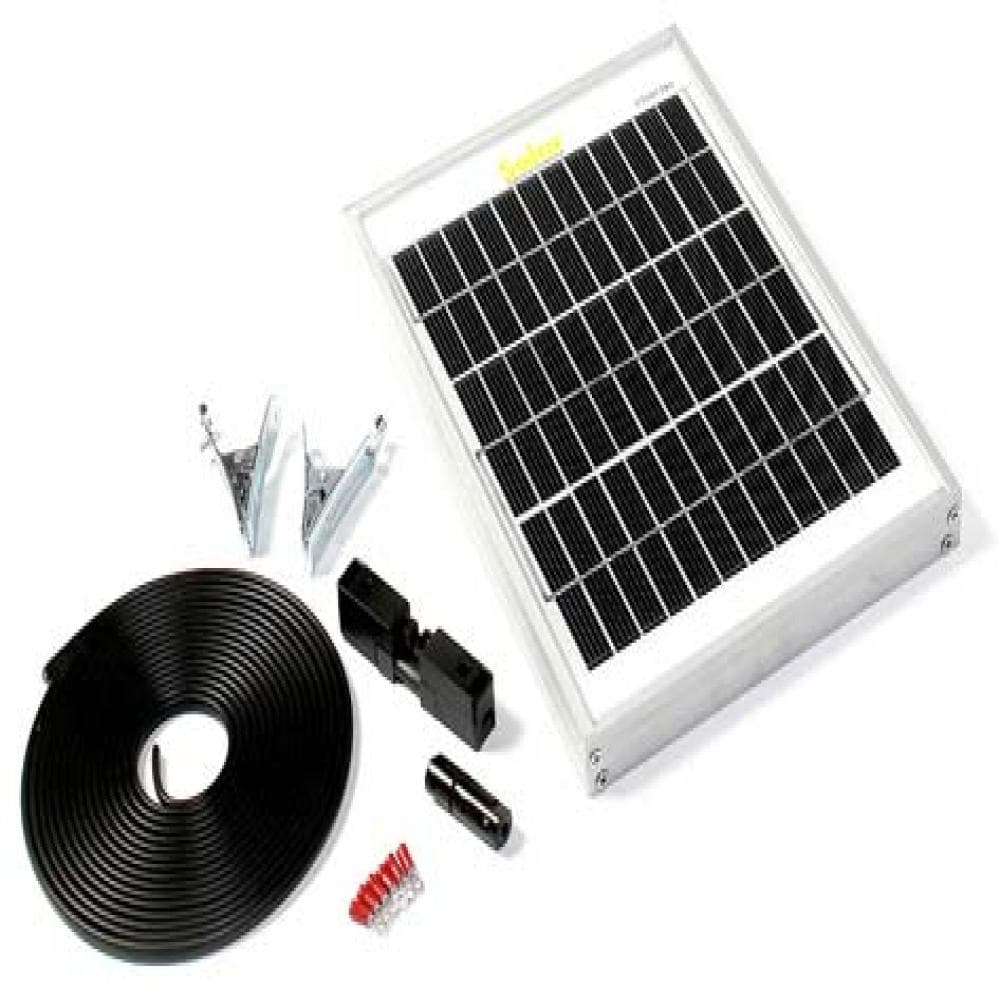

DIY Solar Panel Kit - 5W

The ideal choice to prevent battery drain. The 5 watt panel provides a continuous trickle feed maintaining and extending the life of any 12 volt battery. The 5 watt solar panel is fitted with a blocking diode to prevent reverse current drain and is supplied with all the necessary cable (5m), connectors and detailed installation instructions.

NOTE – The 5W panel kit does not require a charge controller if the battery to be used is larger than 35Ah

Technical Description:

High efficiency crystalline cell for “all weather” charging
Perfect for battery maintenance and off grid lighting projects
Water resistant, robust construction for outdoor use.
In built diode protects against battery discharge
20 year cell warranty and 10 year module warranty

Specifications

Power: 5watts
Peak Output: 390mA @ 16.8V
Approx. watt-hours/day*: 35
Approx. amp-hours/day*: 2.73
Dimensions: 306 x 218 x 25mm
Weight: 1.0kg

* Based on 7 hours of average daily peak sunlight hours
