- Fully adjustable light and sensor position
- Panel can be mounted up to 5m away from lighting unit
- Adjustable sensitivity, lux & time settings
- On / off switch
- Li-ion 2200mAh battery (included)
- Powerful 2w solar panel
- Light turns off after motion stops (adjustable 10 - 80 seconds)
Works in WinterA well positioned solar panel will enable this product to work in typical UK winter conditions.
500 Triggers Per NightOnce motion is detected, this light can activate up to 500 times a night.
100 Watt EquivalentBrightness is equivalent to a 100 watt Halogen light you might use around the home.
No MainsThis light is solar powered and does not require mains power to work.
I'm delighted with this product - easy to fit, good choice of settings and excellent light coverage from a solar power source.
By Paul on Jun 19, 2014
first class product.prompt delivery.also well packed all in all cannot fault.
By brian davis on Mar 27, 2014
Good light but if being erected outside, I would go for the EYE as the EYE is more waterproof and the light effect very similar.
By Ben W on Mar 18, 2014
So far so good
Very happy with product so far, fairly easy to install and all seems to be working perfectly.
By Victoria on Feb 25, 2014
Evo36 Solar security Light
Excellent delivery service, even gave the name of driver and approx delivery time. Have installed the well made fitting, and, am well impressed with the light output.
By Peter on Feb 22, 2014

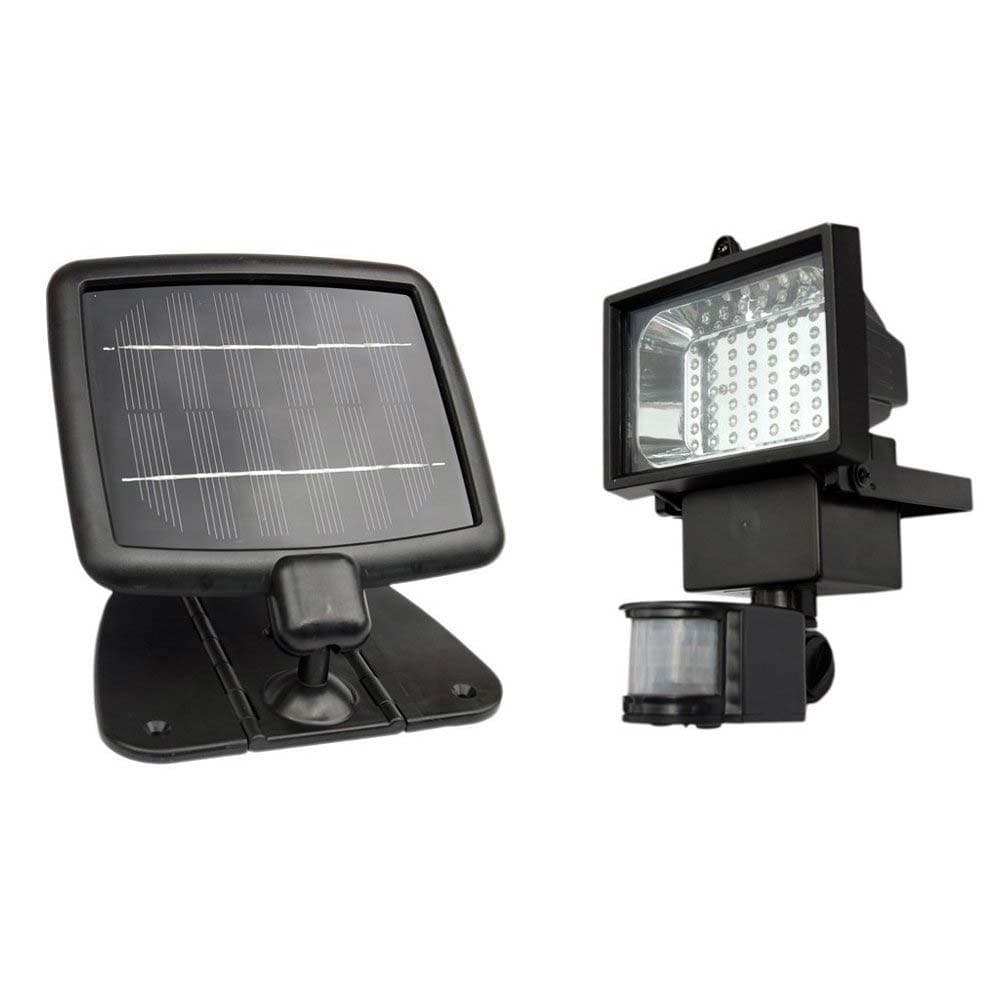

Review the Evo36 Solar Security Light
The Evo36 Solar Security Light is powered by a safe low voltage power pack (housed within the light) so there is no need to pay an electrician to have your light installed and certified.
How does it work?
The Evo36 has a powerful 2 watt solar panel that charges the high capacity battery from daylight during the day. At night the Evo36 illuminates when it detects motion in the same way as regular mains powered security lights.
How do I install it?
The Evo36 Solar Security Light is very easy to install in comparison with mains powered security lights.
The box contains the main light unit, a solar panel connected to 5 metres of cable (3m extension cables available separately), 6 screws with 6 raw plugs and a set of instructions.
1. Mount Evo36 Solar Security Light
2. Mount the Evo36 solar panel within 5 metres of the light
3. Plug panel cable into the light unit
What settings are there?
The Evo36 has 3 settings which can be adjusted to suit your needs.
LUX: The LUX setting enables you to set how dark it gets before the Evo will activate after it detects motion
SENS: The SENS setting allows you to adjust the range of the motion sensor from 2m to 12m
TIME: The TIME setting lets you set how long the Evo will stay on for once it has detected motion from 10 seconds to 90 seconds
Evo Booster Panel Upgrade
The Booster Solar Panel For Evo36 & Evo56 Solar Security Lights adds 2.5 watts of power to the solar panel that came with your Evo. Simply mount your booster panel (same dimensions as your existing Evo panel) and plug it into the second solar panel socket on the back of your Evo. The Booster Solar Panel For Evo36 & Evo56 Solar Security Lights is perfect if you don't have a good south facing location for your existing solar panel or if you plan to use your Evo heavily through out winter.
Product ID: SS7551
Weight: 1.30 kg

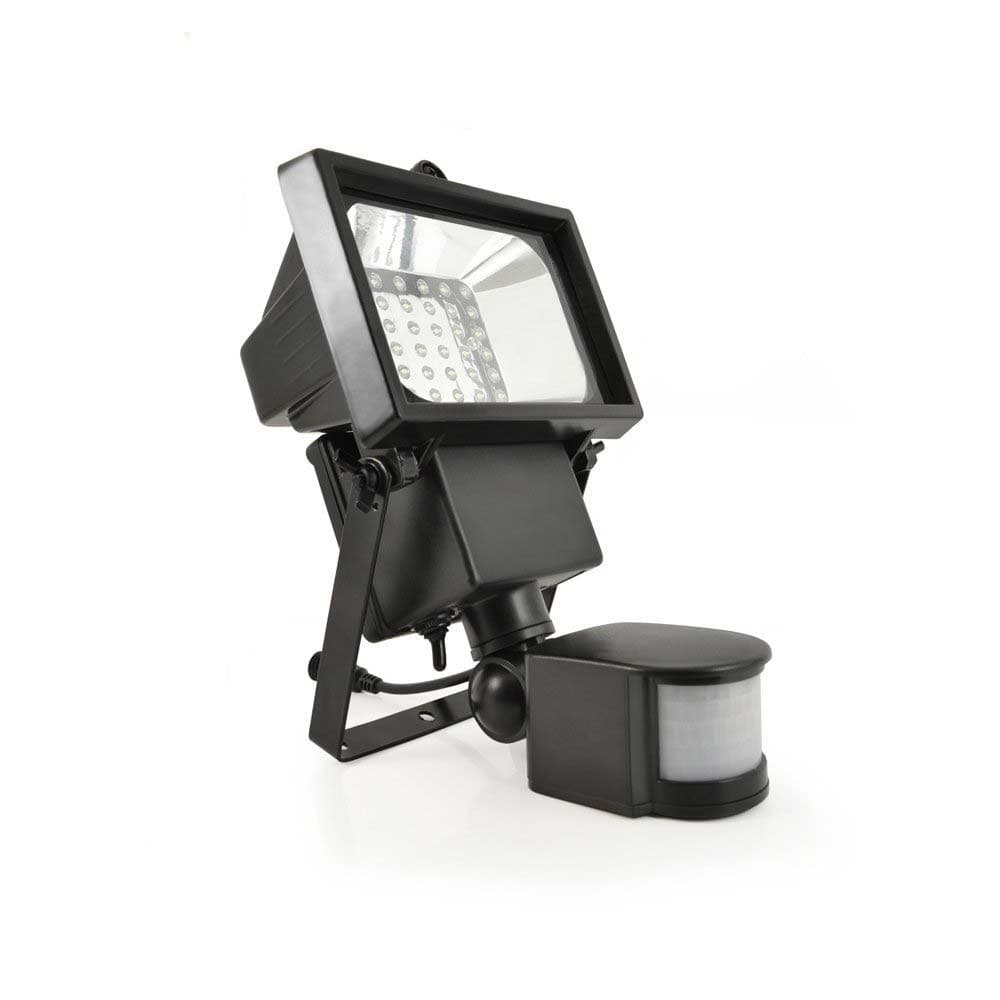

- Light Body: W: 135mm, D: 85mm, H: 250mm
- Solar Panel: 190mm x 175mm
In the Box
- 1 x Light unit (batteries included)
- 1 x Solar panel connected to 5 metres of cable (3m extension cables available separately)
- 6 x screws
- 6 x rawl plugs
How to install
Solar Security Light is very easy to install in comparison with mains powered security lights.
- 1. Mount Evo36 Solar Security Light
- 2. Mount the Evo36 solar panel within 5 metres of the light
- 3. Plug panel cable into the light unit
How it works
The Evo36 has a powerful 2W solar panel that charges the high capacity battery during the day. At night the Evo36 illuminates when it detects motion in the same way as regular mains powered security lights.
Frequently Asked Questions
What is the minimum and the maximum of the range for triggering the PIR sensor?
By Maureen on Jan 26, 2014
The minimum detection range is 1.5m, the max up to 15m.
Would these lights be suitable for an 8 garage compound area. Can they be angled so as not to reflect in rooms?
By Tobias on Jan 24, 2014
Yes, the Evo 36 would be fine for this - it will depend on the area of the compound area as to how many you need and it may work out more cost effective to use the Evo 56. Yes, they can be angled down, to approx 25 degree's to save it shining in rooms.
Can the sensor be pointed downwards as I wish to site in a 3ft sideway over a door which is positioned halfway alang this sideway? Is there an extention lead to extend over 5 metres?
By Graham on Jan 24, 2014
Yes, you can rotate the PIR so it's pointed straight down on the Evo security lights.
You can daisy chain extension leads
however we recommend no more then one extension lead (5m with panel as standard + 3m extension) with any one panel.
If you're struggling to get the panel in a South facing location we recommend facing one panel West, purchasing a Booster Panel
and facing this one East to capture the day's sun that way.
Can you please inform me if this product is Wire Less? and the distance from unit it will operate?
By Harold on Jan 24, 2014
The Evo 36 has a 5m wire running between the light and the solar panel. The PIR will detect up to 15m away.
Is this product weather proof and can it be mounted on an outside wall?
By Ronald on Jan 24, 2014
Yes, the Evo36 it is weather proof and fine to be mounted outside. We recommend, as with mains powered security lights, mounting it under the eaves so it's not drenched when there are downpours.
Does it only come in black or are white ones available?
By Alexa on Jan 24, 2014
The Evos are only available in black.
Does this product have an IP rating? Does it have any guarantee period?
By Bernadette on Jan 24, 2014
The Evo 36 has an rating of IP 44 and comes with a 12 month guarantee.
Can you replace the lamp element if it goes??
By Alan on Jan 24, 2014
The LED bulbs are rated to last for 100,000 hours of use so they will not need changing.
Hi there, looking at the mounting for the solar panel on the EVO 36 can it be mounted on the end of two walls at the corner of the house. I.E one wall SE facing and one SW facing
By Harris on Jan 24, 2014
Yes, you're right, you can corner mount the panel as you describe on the Evo's.
How long does the light stay on for once triggered?
By Rodney on Jan 24, 2014
The light stays on for as long as there is motion in front of the sensor and will turn off up to 80 seconds after the motion stops.
How many Watts are the lights?
By Aidan on Jan 24, 2014
The Evo 36 light is the equivalent of a 100w Halogen bulb.
