Solar Power Station - 60w

This kit a the starting point for achieving power self sufficiency in a home, business, holiday cottage or anywhere that may be subject to power cuts or where the cost of installing mains cable is prohibitively high and to provide long term insulation from future energy price increases.

The kit contains all the necessary parts to be producing your own power within one hour from new.

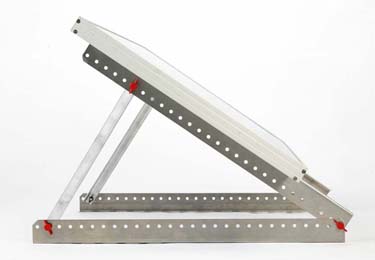

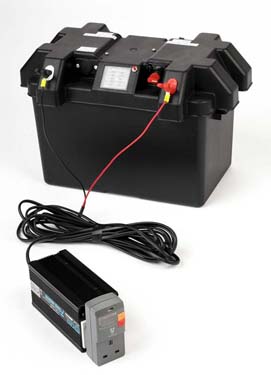

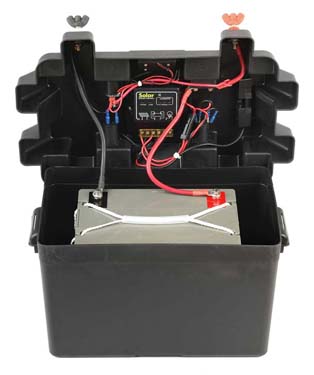

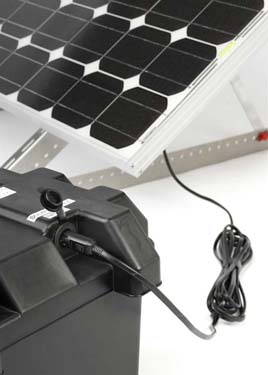

The solar panel must be located outside and is supplied with a robust aluminium stand that allows firm location either on the ground or on a flat roof (the multi position stand ensures the panel is always positioned at the optimum angle � summer and winter). The supplied cable then runs from the solar panel and connects directly into the waterproof battery box, which contains a high performance 85Ah sealed deep cycle solar battery and a charge controller. The battery output cable then needs to enter the building and is then connected to the supplied power inverter. The inverter has a UK 3-pin socket where a multi gang extension cable (not supplied) can be attached to run multiple electrical appliances simultaneously.
Additionally, a 12v �power out� plug and socket is fitting in the battery box so that 12v appliances can be run directly.

The 60 watt Solar Power Kit delivers up to 300 watt hours per day and can be used in many areas such as garages, workshops, stables, agricultural buildings, garden sheds, beach huts etc. It can typically power appliances such as lighting, power tools, power toll battery chargers, car vac, horse clippers, alarm systems etc for between 2 � 4 hours per day. If longer run times or additional appliances need to be powered a bigger SPS kit should be considered or the addition of an SPS expansion kit.

Technical Description:
Contents

• 1 x 60w solar panel
• 1 x Multi position aluminium rack
• 1 x 85Ah Deep Cycle Battery
• 1 x INV300 - 300Watt Inverter
• 1 x Waterproof Battery Box
• 1 x 12Ah Charge Controller
• 1 x 20m Cable bundle
• 1 x Power RCD Socket
• 1 x Connectors, fuses and terminals
• 1 x Digital multi meter
• 1 x Detailed user manual

Details

Product ID: SS7655

Weight: 5.00 kg
