5 watt panel ideal for trickle charging 12v batteries or to provide enough power for a simple 1 light system in a shed or outbuilding.
5 watt panel ideal for trickle charging 12v batteries or to provide enough power for a simple 1 light system in a shed or outbuilding.

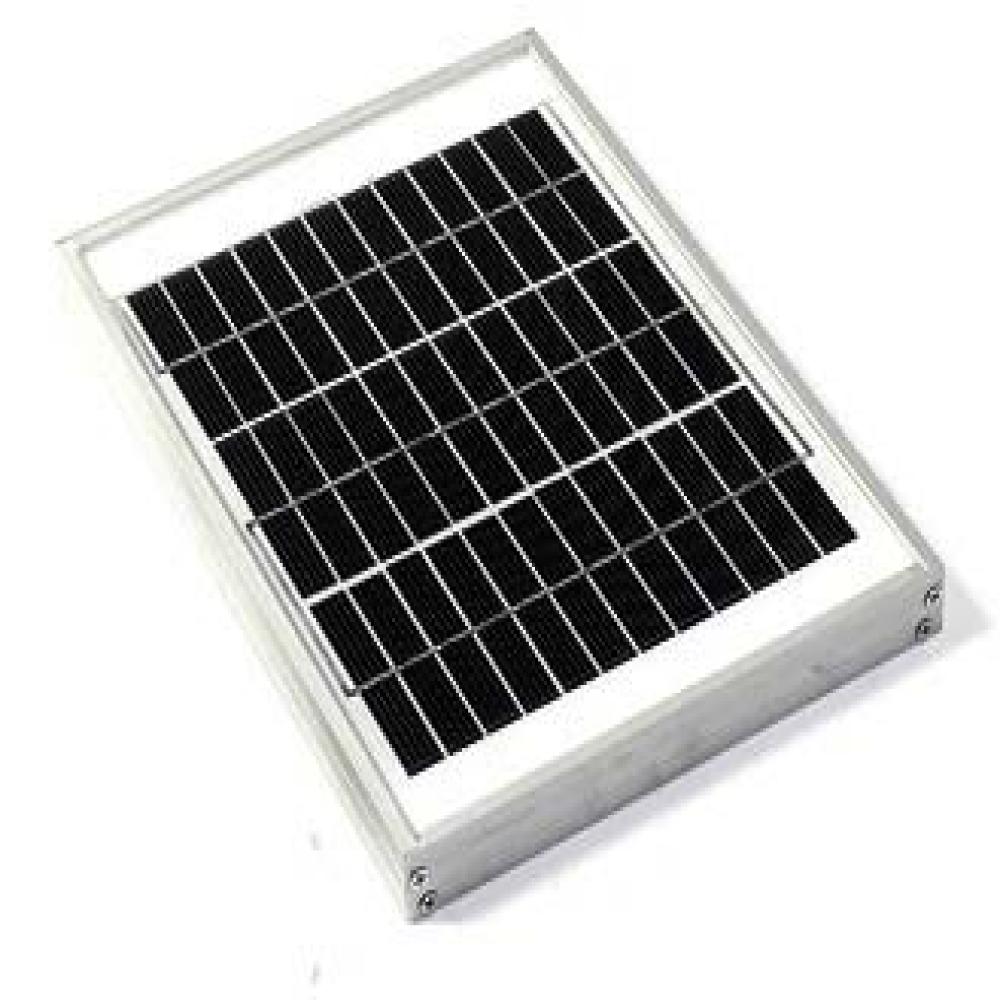

5w Solar Panel ideal for trickle charging 35ah 12v or larger batteries and providing solar energy for small lighting systems.
Small in size makes this ideal for portability when camping or when on a road trip.
Cell: Polycrystalline silicon cells
Size: 364mm 164mm 17mm
Encapsulation: sealed with low iron tempered glass and anodized aluminium alloy frame
Peak output: power 5w
peak voltage: 18v
open circuit voltage: 21.6v
Life span for each module: 25 years.
Connection box: waterproof junction box.
20 Year Warranty
Need a wiring kit for your panel?
5 Metre solar panel wiring Kit
10 Metre solar panel wiring Kit
20 Metre solar panel wiring Kit
5w Solar Panel ideal for trickle charging 35ah 12v or larger batteries and providing solar energy for small lighting systems.
Small in size makes this ideal for portability when camping or when on a road trip.
Cell: Polycrystalline silicon cells
Size: 364mm 164mm 17mm
Encapsulation: sealed with low iron tempered glass and anodized aluminium alloy frame
Peak output: power 5w
peak voltage: 18v
open circuit voltage: 21.6v
Life span for each module: 25 years.
Connection box: waterproof junction box.
20 Year Warranty
Need a wiring kit for your panel?
5 Metre solar panel wiring Kit
10 Metre solar panel wiring Kit
20 Metre solar panel wiring Kit
Asked by martin on 23 Jan 2015
It would need to be plugged in to a battery. See our Geo Kits for an idea on how to do this.
4.4 out of 5
7 reviews
KBW
Reviewed on 30 Sep 2019
I already had one of these panels, still working after 4 years and it does work well. However, if left attached permanently to eg a car battery, without a charging controller it will discharge during the night. That said one can buy a decent(ish) controller for about £6 or so online. So that's what we do and the combination is ideal for keeping the ride-on mowers nicely topped up with charge.
Gus Mackay
Reviewed on 7 Apr 2017
Price very competitive: fixing OK but slightly ackward: it appears to charge the 12v battery as required.
Jeff
Reviewed on 22 Aug 2015
Excellent product. Good build quality and output.
Allan Langan
Reviewed on 16 Jul 2015
Carried out a test run yesterday, didn't know what to expect and was thrilled when the small extractor fan I connected directly to the unit started to whirl. Well satisfied with its construction ..... I Need to learn a lot more about solar panels but at this moment in time a 4 star rating seems appropriate
M Wilson
Reviewed on 3 Apr 2015
Alloy frame makes mounting the panel very easy. I used pop rivets and small angle brackets to fix to the side of a shed. I found the connection box on the back tricky as the cable connections have to be soldered (no screw connectors) and also there is little free space making fitting the cover a tight fit if you use a good sized cable. Hence 4 star rating..
